Cantilever shelf heavy warehouse storage hardware steel pipe pipe plate bracket single and double-sided large cantilever shelf factory
Time:2022/2/8

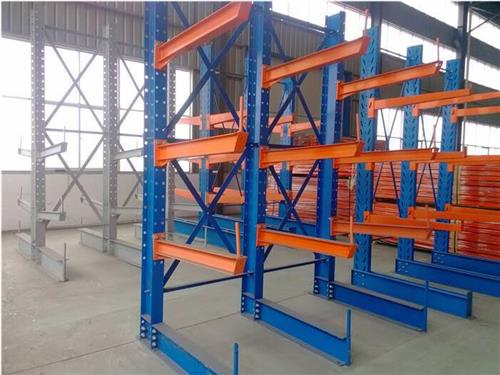

Cantilever shelf   



   the cantilever shelf adopts special profile column and high-strength cantilever, which is suitable for storing long materials, ring materials, plates, pipes and irregular materials. The overhanging cantilever can be single-sided or double-sided, with the characteristics of light structure and good load-bearing capacity. The load-bearing capacity of one arm can reach 500kg. The specially reinforced column structure can withstand the pressure of 2000 ~ 3000kg. Design back pull to increase the overall stability of the shelf, easy installation and complete accessories. Put the materials that are difficult to store into an orderly storage system, so that the goods can be easily obtained and tracked, and the forklift can be easily loaded and recycled. Stored items are displayed in a highly visible manner, accelerating inventory control. It has the characteristics of stable structure, good load capacity and high space utilization. Suitable for warehouses with small space and low height.   



   structural features of cantilever shelf   



   1. Cantilever shelves can be divided into single arm and double arm, which store wood, pipe, strip and other similar products. The cantilever shelf can be composed of a single column piece unit and a cantilever, which can continuously form a plurality of unit systems through horizontal tie rods, diagonal tie rods, etc.  



  2. Cantilever shelf is an effective storage system in terms of quality, reliability and management. The column piece is composed of column and base. The column is welded by two specially designed C-shaped steel. This structure makes full use of the load-resistant capacity of the material and has the characteristics of large load-bearing and low cost.  



   3. The column is prefabricated with double rows of holes, and the pitch of the holes is 100mm. The cantilever is connected with the column through the plate pin, which can be adjusted up and down with 100mm as the pitch.   



  structural advantages of cantilever shelf  



  the cantilever can be single-sided or double-sided. The cantilever shelf has the characteristics of stable structure, good load capacity and high space utilization. Goods are accessed by forklift, crane or manual.   



   the height of cantilever shelf is usually within 2.0m (up to 6m if the goods are accessed by forklift), the cantilever length is within 1.5m, and the load of each arm is usually within 800kg.   



  purpose of cantilever shelf  



   cantilever shelves are suitable for storing long materials, ring materials, plates, pipes and irregular goods. Cantilevered shelf columns mostly adopt H-section steel or cold-rolled section steel, the cantilever adopts square tube, cold-rolled section steel or H-section steel, the cantilever and column adopt plug-in or bolt connection, the base and column adopt bolt connection, and the base adopts cold-rolled section steel or H-section steel. Goods are accessed by forklift, crane or manual.   



   the shelf height is usually within 2.5m (up to 6m if the goods are accessed by forklift), the cantilever length is within 1.5m, and the load of each arm is usually within 1000kg. Such shelves are mostly used in machinery manufacturing industry and building materials supermarket. After adding shelves, it is especially suitable for warehouses with small space and low height. It has convenient management and wide vision. Compared with ordinary shelf shelves, it has higher utilization rate; According to the bearing capacity, it can be divided into light weight type, medium weight type and weight type.
